  • SHOWER & SINK CONFIGURATION

SHOWER & SINK CONFIGURATION

KAR-2AC25

Instant boilers heat water directly, without using a water storage enclosure. When the faucet is open, cold water flows through a hose to the unit. An electric resistance heats the water. As a result, instant boilers constantly supply hot water. You don't have to wait for a tank to be filled with water and then heated.

The accessories delivered together with the device are imperative enough for the correct operation of the device.

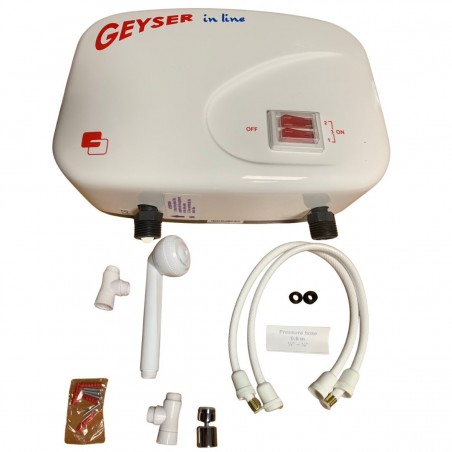

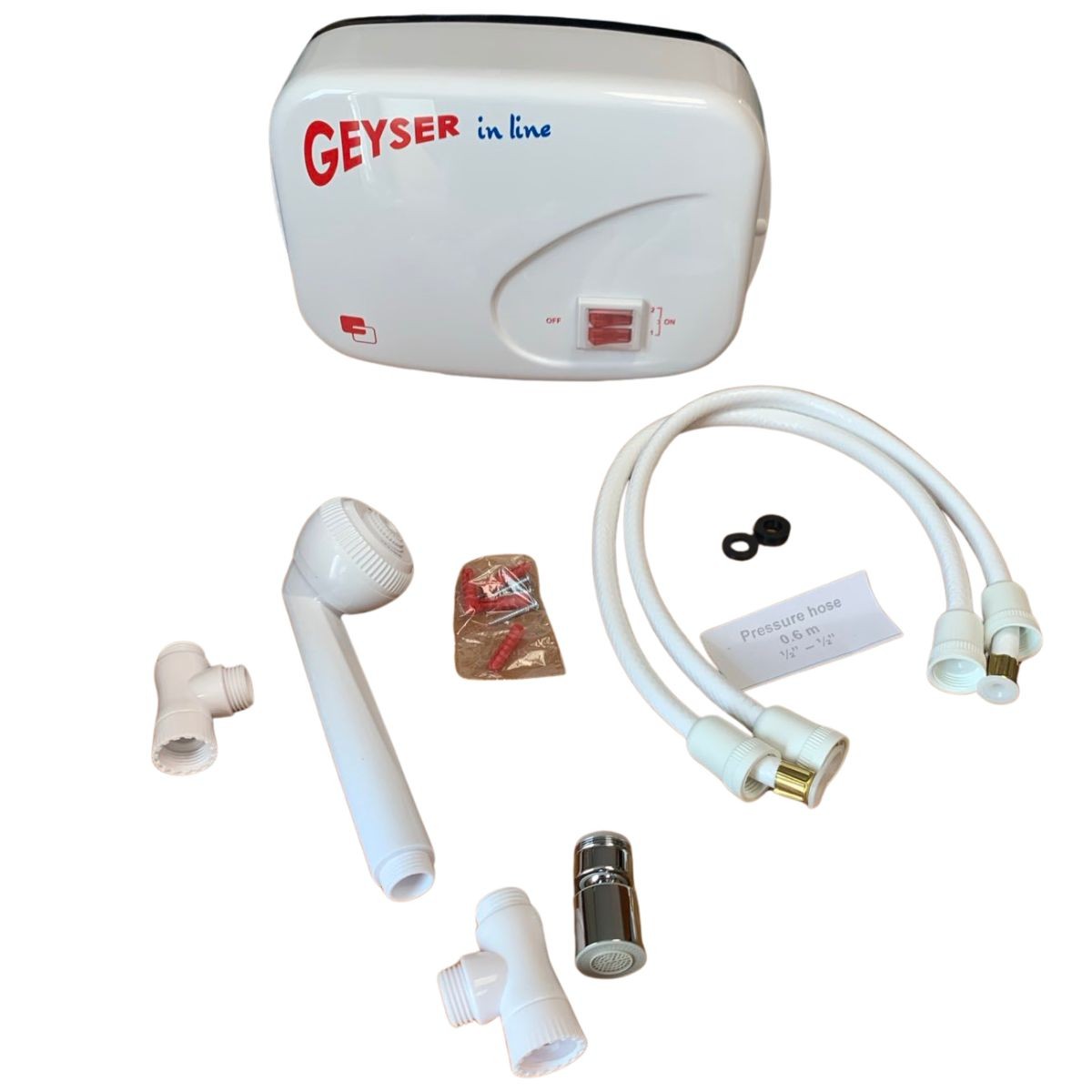

The package contains:



  • Geyser mode (Geyser New)
  • finger filter
  • ¾" diverter valve
  • pressure hose 0.4 m
  • ½" diverter valve
  • the swan with pearler
  • shower hose 1.5 m
  • adjustable shower faucet
  • shower stand
  • dowels, dowel screws
  • gaskets



Security policy



Delivery policy



Return policy

Description
  • Supply voltage: 230 V
  • Maximum power: 5000 W
  • Selectable work steps: 2000 W, 3000 W, 2000 W + 3000 W
  • Maximum temperature of heated water: 64ºC
  • Heating elements: immersion heater type, in copper sheath and sintered insulation
  • The power of the heating elements: 2 kW first stage / 3 kW second stage
  • The working mode of the heating resistors: in economic mode (separate 2 kW or 3 kW) / in maximum mode (simultaneously 5 kW); the operation of each resistance is signaled brightly with the LED incorporated in the related control button
  • Maximum heated water temperature: 60 ºC, overheating: 40 ºC at a flow rate of 1.5 liters / min. (maximum power regime 5 kW)
  • Minimum water pressure at the device entrance: 0.04 MPa (0.4 bar = 4 meters of water column)
  • Heated water flow rate: adjustable from the supply tap, depending on the desired inlet and outlet water temperature, respectively the selected heating level
  • Degree of protection: IP 54
  • Protection against electric shock: class I (all active electrical components are isolated from the water heating circuit and the manual controls of the device; it is provided with a protective conductor)
  • Moisture protection: IP X4 (against splashes of water)
  • Functional protection: in the event of over-temperature and in the event of an accidental drop in the water supply flow, (thermolimiter and pressure switch with double contact)
  • Sanitary protection: the water heating circuit is made of sanitary approved components (they are not corrosive and do not contain toxic components)
  • Dimensions: 280 x 175 x 110 mm
  • Accessories included
Product Details
KAR-2AC25
