Sigma Tile Cutter SERIE 4 (NEX Handle) - 125cm

SIG-004EN

Ergonomic handle specific for pushing incision.

  • Max Cutting Length: 1250mm
  • Max - 88.4cm Diagonal Cut
  • Large Tile Support Table

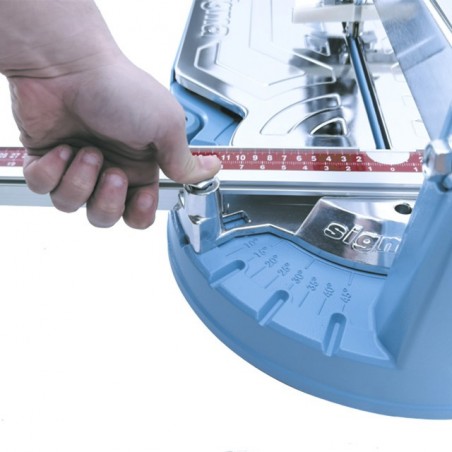

  • 45° Second Measurement Scale



Security policy



Delivery policy



Return policy

Description

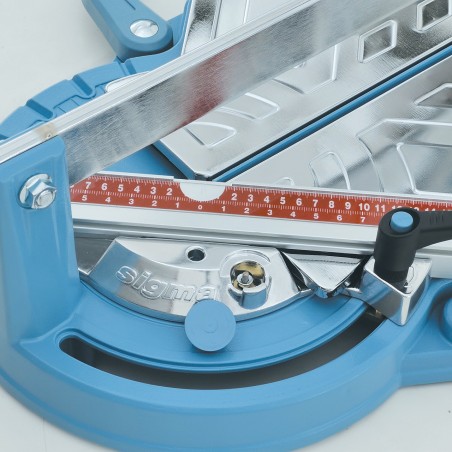

The 16mm diameter scoring wheel is always clearly visible on the operator side and equipped with double suspension for the cushioned scoring of structured tiles.

The scoring wheel rotates on a roller bearing, guided laterally by an anti-friction metal shell inserted in a CNC milled holder, to avoid friction and lateral clearance.

Wheels diameter 16mm with internal bearing for maximum smoothness in the scoring phase, also available in Titanium coated version. 120 mm wide splitting foot with interchangeable anti-mark protection.

The sliding carriage is clearance-free, thanks to 3 double-row ball bearings that guarantee precision over time without the need for maintenance.

There is an automatic system that keeps the handle raised facilitate the insertion of the tile.

Automatic steel compensator for adjusting the slide preload on the rail

For splitting phase, simply lift the handle to allow automatic rotation of the foot.

The front protective rubber pad absorbs the impact during the incision in order not to damage the base.

Product Details
SIG-004EN
Attachments
Download
